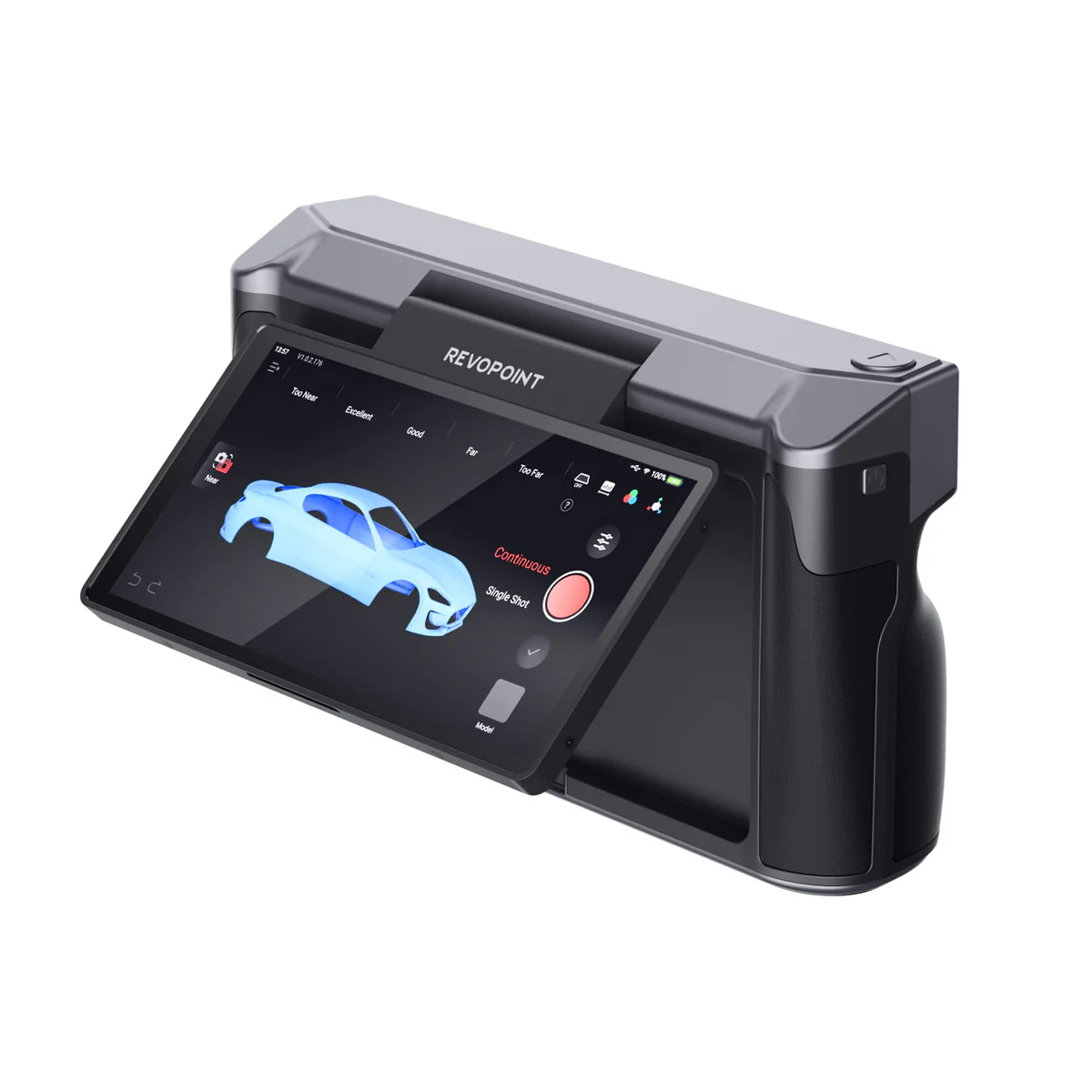

Revopoint Miraco Plus 3D Scanner The Revopoint Miraco Plus 3D scanner, winner of the prestigious Red Dot Award 2024, is a versatile solution that combines the ultra-high precision of photogrammetric metrology with the flexibility to scan both smaller items, such as screws, and large industrial objects. With 2x optical zoom and speeds of up to 20 frames per second, you get clear and fast capture of even the most complex shapes, while the 48MP RGB camera provides vivid, natural colour reproduction in 8K quality. The built-in 9-axis IMU stabilises every movement, eliminating blur, while the 180° tiltable 2K AMOLED screen allows for intuitive real-time progress preview. With a four-step workflow (marker preparation, photography, point cloud calculation and capture, and processing and export), Miraco Plus streamlines prototyping and advanced projects, offering the highest quality measurements without the need to hire additional services. Innovative photogrammetric metrology At the heart of Miraco Plus is an ultra-efficient photogrammetric metrology system that reduces error accumulation in real time when combining successive fragments of the point cloud. Thanks to this, even the most complex shapes, from impressive sculptures to small mechanical elements, are reproduced with unparalleled consistency. With a single frame accuracy of up to 0.04 mm, you won’t miss a single detail. Photogrammetric length accuracy of 0.02 mm 0.05 mm × L (m) ensures that your model will be true to its actual dimensions. From microscopic screws to large industrial objects Miraco Plus can easily handle delicate jewellery items as well as large automotive components or motorcycles. Two times optical magnification allows you to focus on the smallest details, and a capture speed of up to 20 frames per second means that even long objects can be scanned quickly and smoothly. Two operating modes (Single-shot and Continuous) can be adjusted to your needs, regardless of how complex the scanned surface is. Unmatched colour quality and stability The built-in 48 MP RGB camera captures the full colour spectrum in 8K quality, so your finished 3D models do not require additional colour correction. Stabilisation based on a 9-axis IMU (Inertial Measurement Unit, a module that measures the acceleration and angular velocity of an object in space using accelerometers and gyroscopes) eliminates blurring and vibration, even when working in the field or without a tripod. A large 2K AMOLED (Active-Matrix Organic Light-Emitting Diode, an advanced display technology that uses organic light-emitting diodes) screen, tiltable by 180°, allows you to monitor scanning progress in real time and in any position. Intuitive, four-step workflow The entire digitisation process boils down to four simple steps, carried out without the need to transfer data outside the device until the final export – the first step is preparation (place the measuring tape, coded targets and markers included in the set on or around the object – these are the reference points for photogrammetric analysis), photographing (take photos from different angles and heights until every part of the object is in the frame), calculations and point cloud capture (Miraco Plus automatically recognises marker positions, merges shots and creates a coherent point cloud), and processing and exporting (advanced software allows you to correct, filter and edit the model, then export the finished file to your desktop or the cloud with a single click). The Miraco Plus 3D scanner measuring tape set of magnetic markers set of adhesive markers tripod turntable bust (for scanning) turntable cover markers 65W adapter with dual USB Type-C ports calibration plate for remote scanning x4 calibration plate cover close-range calibration plate magic mat x2 USB Type-C to HDMI adapter USB Type-C to Type-A adapter wrist strap storage bag user manual Manufacturer Revopoint Model Miraco Plus Technology Quad infrared structured light camera with optical zoom and photogrammetric metrology Single frame precision 0.02 mm Single frame accuracy 0.04 mm Photogrammetric length accuracy 0.02 mm 0.05 mm x L (m) Splicing point distance 0.05 mm Working range 100 – 1000 mm Single capture area at closest distance 28 x 53 mm at 100 mm Single capture area at maximum distance 975 x 775 mm at 1000 mm Minimum scan volume 10 x 10 x 10 mm Maximum scan volume 4 × 4 × 4 m Scanning speed 20 fps Camera resolution Depth camera: 2MP, RGB camera: 48MP CPU 8-core ARM A76, 2.4 GHz, Mali G52 GPU 3D light source Class 1 infrared light RAM and internal storage 32 GB 256 GB Fill lights Depth camera: 8, RGB camera: 2 Sensors 9-axis IMU
