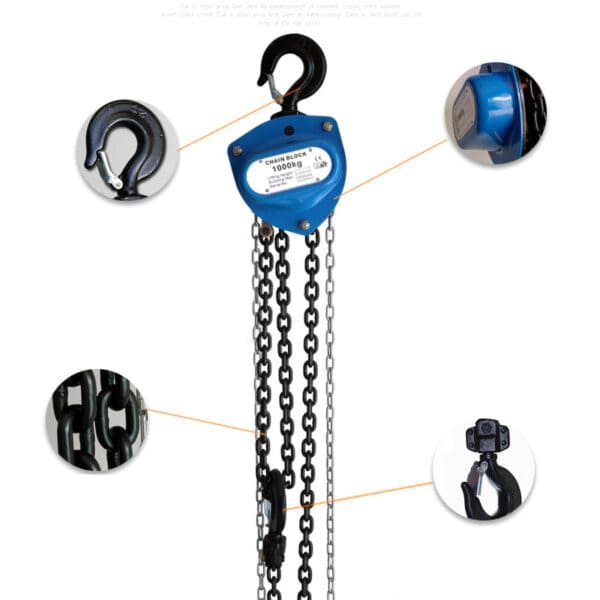

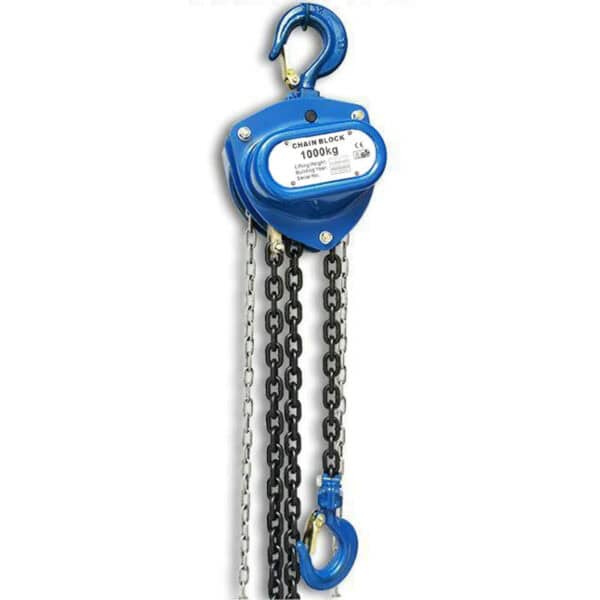

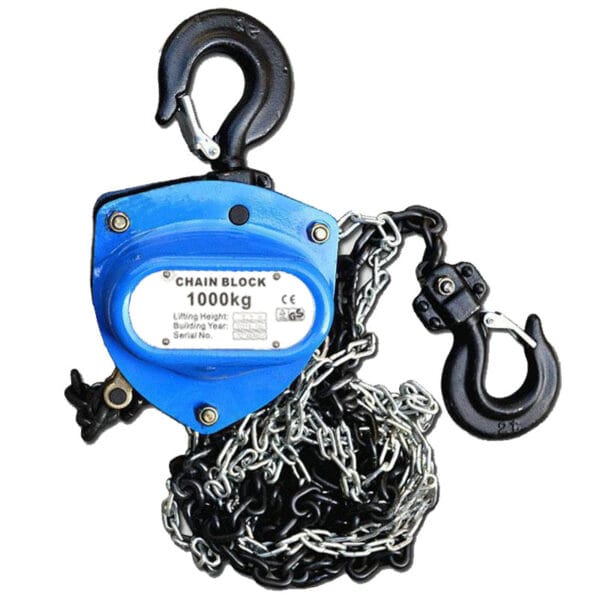

Description Item No. ZHC-A-1T Capacity(kg) 1000 Standard Lift(m) 3 No.of Load Chain Falls 1 Load Chain Dia. mm 6*18 Effort Required To Lift Max. Load(n) 250 Dimension(mm) A 172 B 151 C 26 D 40 Hmin 376 Net Weight(kg) 12 Key features: Type: Manual Chain Fall Capacity: 1000 kg (1 T) Standard Lift Height: 3 meters Load Chain Configuration: 1 load chain fall with a diameter of 6 x 18 mm, made from G80 lifting chain for enhanced durability. Effort to Lift Maximum Load: 250 N Dimensions: A: 172 mm B: 151 mm C: 26 mm D: 40 mm Minimum Height: 376 mm Net Weight: 12 kg Color Options: Standard yellow and blue; customizable colors available based on distributor preference. This Manual Chain Fall is engineered for efficient lifting with a robust design, making it an ideal choice for distributors looking to supply reliable lifting equipment.
